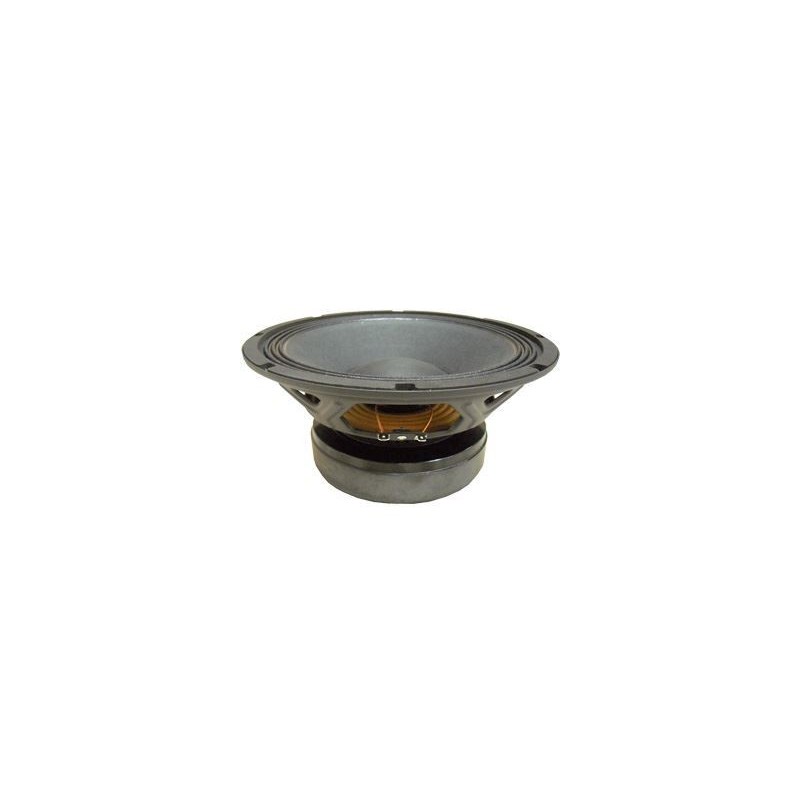

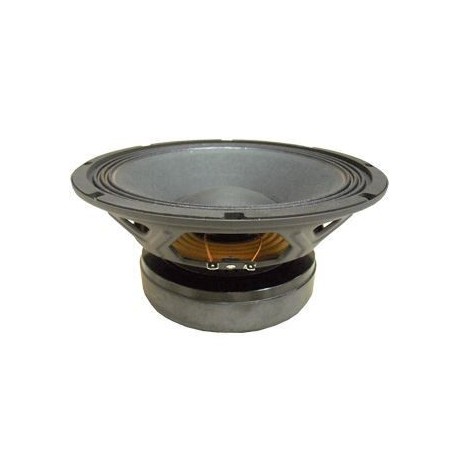

Altavoz de 10' para bajas frecuencias 10MCS500

TECHNICAL SPECIFICATIONS Nominal diameter 250 mm 10 in Nominal impedance 8 Ohm Minimum impedance 7.2 ohm Power capacity 500 W AES Program power 1000 W Sensitivity 96 dB @ 1 W @ ZN Frequency range 70-5000 Hz Voice coil diameter 63.5 mm 2.5 in BL factor 17.6 N/A Moving mass 0.047 kg Winding length 19.5 mm Air gap height 9.5 mm Xdamage pp 40 mm THIELE SMALL PARAMETERS Fs 70 Hz Re 5.7 ohm Qms 10.1 Qes 0.38 Qts 0.37 Vas 18.8 l Cms 109 µm / N Rms 2.05 kg/s Efficiency % 1.65 Sd 0.035 m² Xmax 8 mm Vd 280 cm³ Le @1 kHz 1.1 mH CONSTRUCTIVE DETAILS Depth 125 mm 4.9 in Net weight 5.7 kg 12.5 lb Total weight 6.1 kg 13.42 lb Magnet Ferrite
