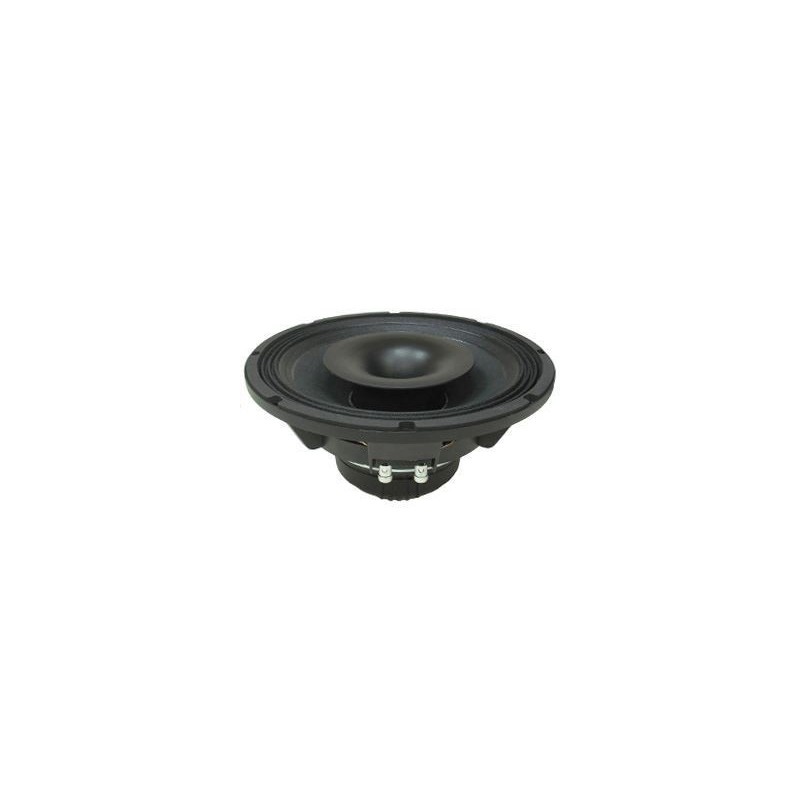

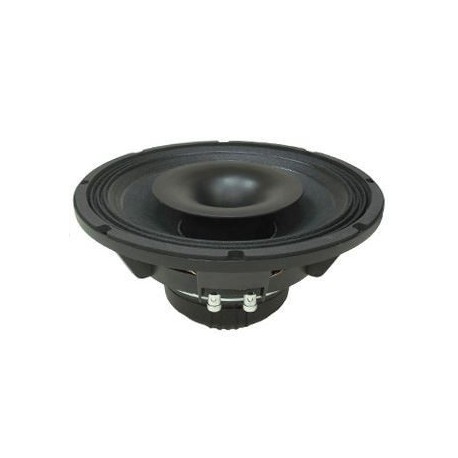

Altavoz de 12' coaxial 12CXA400ND

Nominal diameter 300 mm 12 in Nominal impedance LF/HF 8/16 ohm Minimum impedance LF/HF 6.8/13.5 ohm Power capacity LF/HF 400/90 W AES Program power LF/HF 800/180 w Sensitivity LF/HF 98/105 2.83 @ 1 m @ 2? Frequency range 35-20000 Hz Recom. crossover frequency 1.5 kHz or higher (12dB/oct min slope) Voice coil diameter LF/HF 100/72 mm - 4 /2.9 in Dispersion (conical) 60º BL factor 18.1 N/A Moving mass 0.048 kg Winding length 16 mm Xdamage pp 28 mm LF Recone kit ref. 5M12CXA4ND8 HF diaphragm ref. 5MCP756
