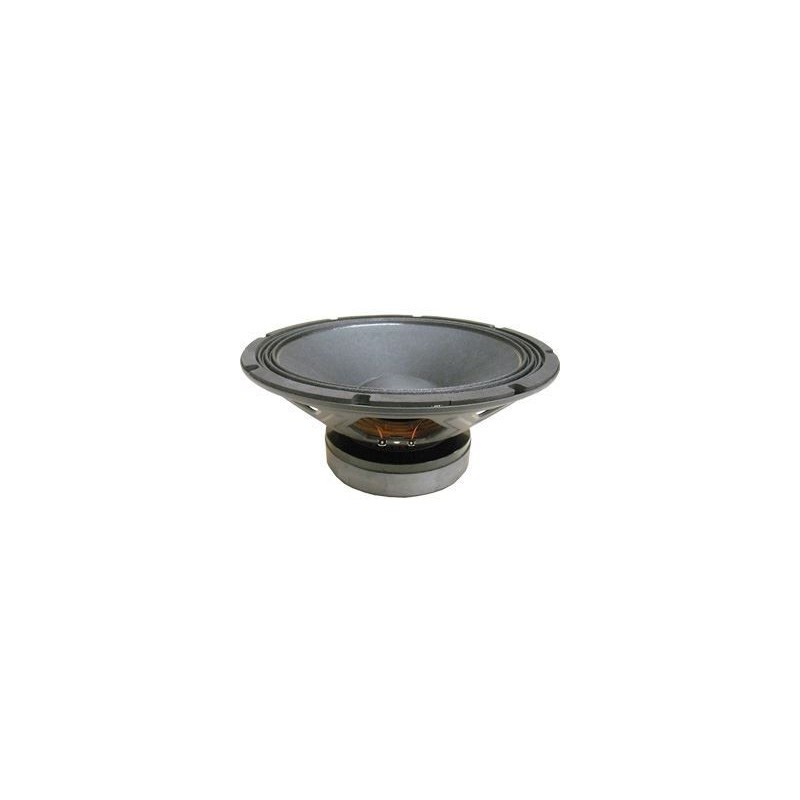

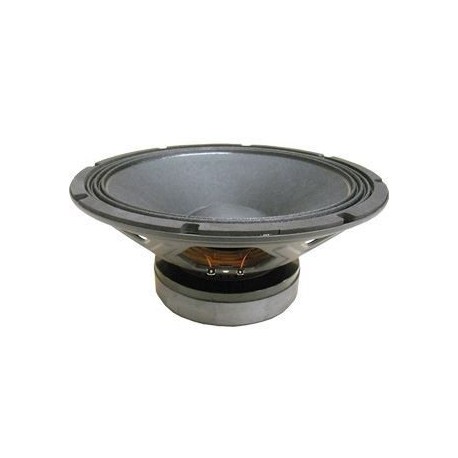

Altavoz de 12' para bajas frecuencias 12MCS500

TECHNICAL SPECIFICATIONS Nominal diameter 300 mm 12 in Nominal impedance 8 Ohm Minimum impedance 7.3 ohm Power capacity 500 W AES Program power 1000 W Sensitivity 97 dB 1 W @ 1 m @ ZN Frequency range 65-5000 Hz Voice coil diameter 63.5 mm 2.5 in BL factor 18 N/A Moving mass 0.064 kg Winding length 19.5 mm Air gap height 9.5 mm Xdamage pp 40 mm THIELE SMALL PARAMETERS Fs 62 Hz Re 5.7 ohm Qms 7.8 Qes 0.44 Qts 0.42 Vas 44 l Cms 103 µm / N Rms 3.18 kg/s Efficiency % 2.3 Sd 0.055m² Xmax 8 mm Vd 440 cm³ Le @1 kHz 1mH CONSTRUCTIVE DETAILS Depth 141 mm 5.55 in Net weight 6 kg 13.3 lb Total weight 6.7 kg 14.77 lb Magnet Ferrite
