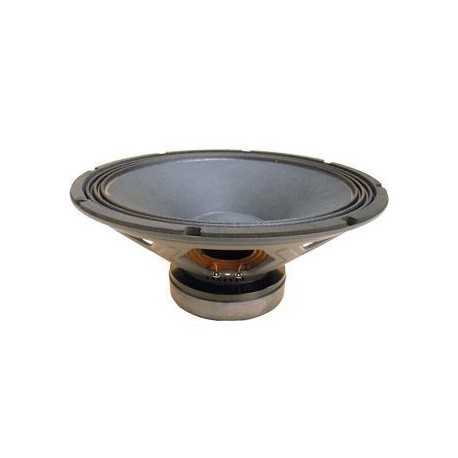

Altavoz de 15' para bajas frecuencias 15MCS500

TECHNICAL SPECIFICATIONS Nominal diameter 380 mm 15 in Nominal impedance 8 Ohm Minimum impedance 7.2 ohm Power capacity 500 W AES Program power 1000 W Sensitivity 97.5 dB 1 W/1 m @ ZN Frequency range 50-4000 Hz Voice coil diameter 63.5 mm 2.5 in BL factor 18 N/A Moving mass 0.098 kg Winding length 19.5 mm Air gap height 9.5 mm Xdamage pp 40 mm THIELE SMALL PARAMETERS Fs 46 Hz Re 5.8 ohm Qms 7.8 Qes 0.5 Qts 0.48 Vas 133.5 l Cms 122 µm / N Rms 3.6 kg/s Efficiency % 2.5 Sd 0.088 m² Xmax 8 mm Vd 704 cm³ Le @1 kHz 1.1 mH CONSTRUCTIVE DETAILS Depth 172 mm 6.77 in Net weight 6.2 kg 13.67 lb Total weight 7.2 kg 15.87 lb Magnet Ferrite
